Newly Launched

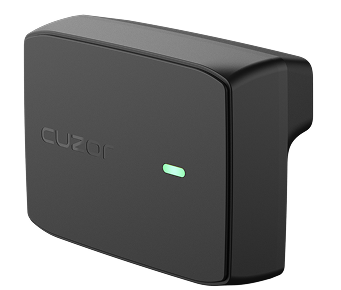

Cuzor Mini UPS for AirFiber

Upto
4 hours
Backup.
Built-in EV-grade 3C batteries ensure reliable backup for your AirFiber. A brief outage or an extended power cut - Cuzor Mini UPS for AirFiber keeps your internet running.
BIS
Certified
4x
2900
mAh Batteries
More Power, Less Heat, Lasts Longer

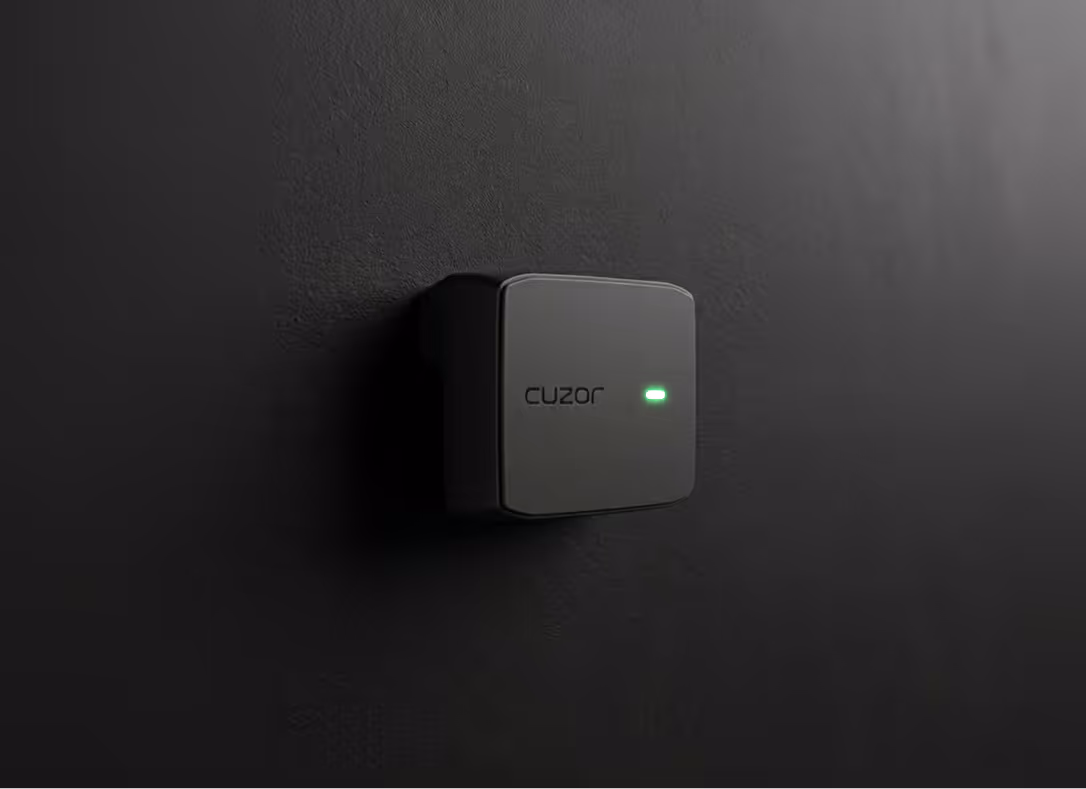

Compact. Lightweight.
Wall-Mount Ready.

Easy installation. Designed to seamlessly disappear into your setup.

1 Year replacement warranty.

Having trouble? We pickup your old unit and ship a new one to your doorstep.

Zero Lag Switching.

Avoid router restarts duringpowercuts. Enjoy uninterruptedconnectivity.

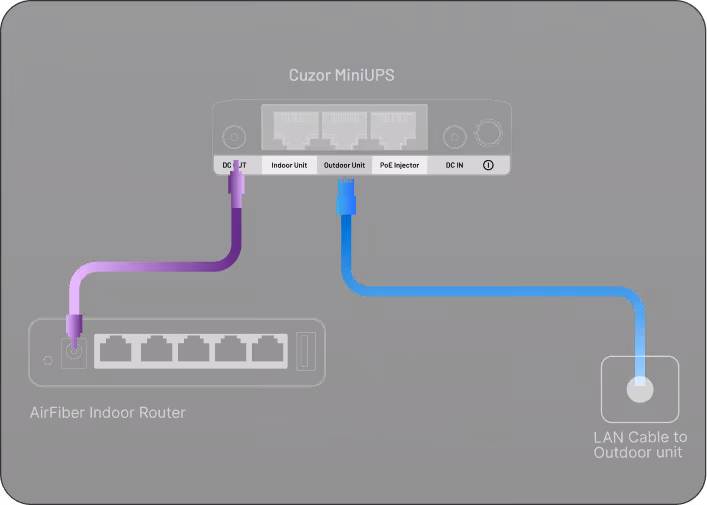

Native PoE Design.
Purpose-Built for AirFiber.

Power your indoor and outdoor units seamlessly, from a single UPS

54V passive PoE output for the outdoor antenna and a stable 12V output for the indoor router

No Energy Wastage.

No Double Conversion.

Direct regulated DC outputs reduces energy loss and gives longer usable backup.

No more DC→AC→DC conversion

Engineered for a Superior Experience.

Protection
Efficiency
Purpose Built

Smart Battery Power Distribution Management.

Built-in EV-grade 3C batteries power your AirFiber connection through outages. From sudden power cuts to longer disruptions, stay connected with up to 4 hours of reliable backup.

4x2900

mAh Batteries

Overcharging protection

Overcharging protection

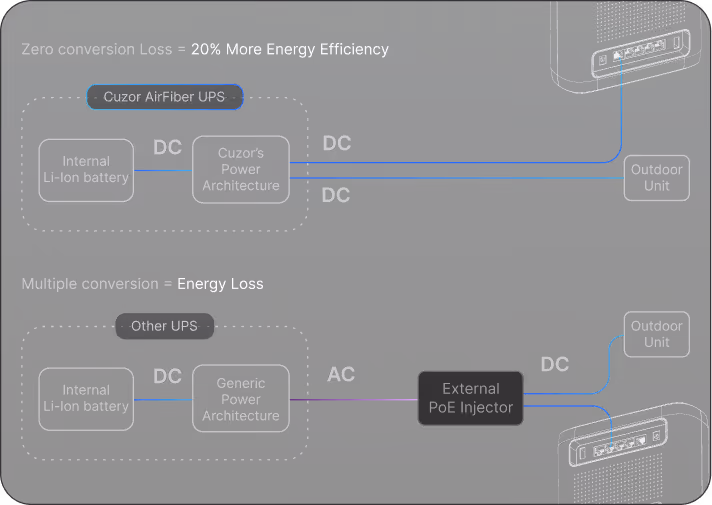

Up to 20% More Efficient Power Design.

Cut down losses due to typical double power conversions

Others
Battery → DC → AC → Device converts back to DC → Loss
Cuzor
Direct regulated DC (12V + 54V PoE) → Higher usable backup

Purpose-Built for your AirFiber

Complete Backup for Both Outdoor Unit & Router

Protection

Smart Battery Power Distribution Management.

Built-in EV-grade 3C batteries power your AirFiber connection through outages. From sudden power cuts to longer disruptions, stay connected with up to 4 hours of reliable backup.

4x2900

mAh Batteries

Overcharging protection

Overcharging protection

Efficiency

Up to 20% More Efficient Power Design.

Cut down losses due to typical double power conversions

Others
Battery → DC → AC → Device converts back to DC → Loss
Cuzor
Direct regulated DC (12V + 54V PoE) → Higher usable backup
Purpose Built

Purpose-Built for your AirFiber

Complete Backup for Both Outdoor Unit & Router

Indicators

Reliable indicators for real-time status.

3 states LED indicator

Charging
Full charge
On Battery

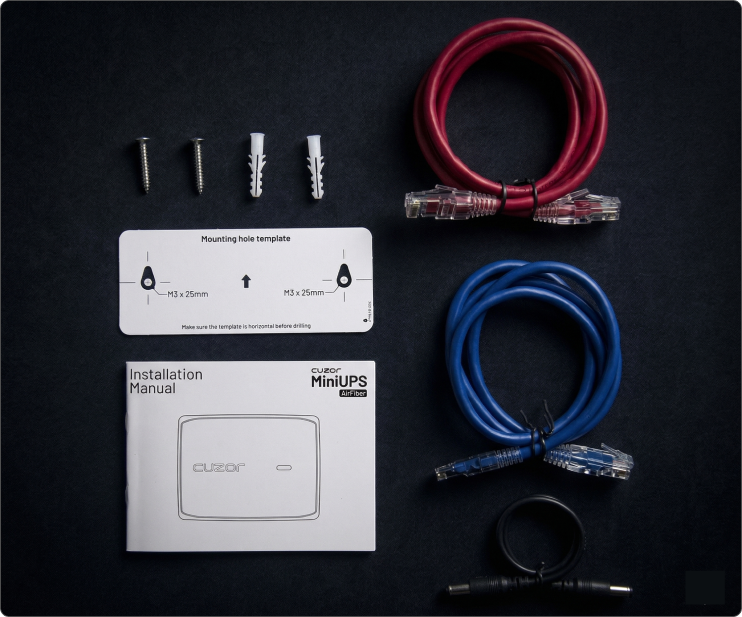

Inside the box

Packed with objects to make your life better.

Setup with confidence. Download the installation guide.
Download Instalaltion Guide

Technical Specifications

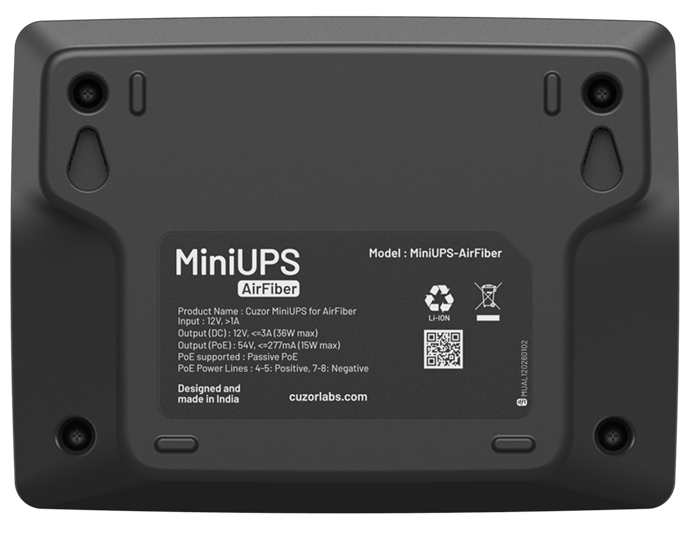

Model : MiniUPS for AirFiber
Product Specs
Compatible Devices
Jio AirFiber (PoE), Jio AirFiber Plus (PoE), Airtel AirFiber (PoE & Non-PoE)
Input Ports
DC Jack (12V input from adapter); Ethernet Port (54V input via bridge cable)
Output Ports
12V Output (via bridge cable)
I/O Ports
Ethernet Port with PoE (data + 54V injection); Ethernet Port (data to router)
PoE Output
Passive PoE, 54V Fixed
PoE Power
15W (54V @ 277mA)
PoE Pin Configuration
Pins 4-5 (+), Pins 7-8 (GND)
Router Output Voltage
12V Fixed
Max Output Current (Router)
3A
Power Topology
Buck Converter(for 12V), Boost Converter(for 54V)
Efficiency
~87%

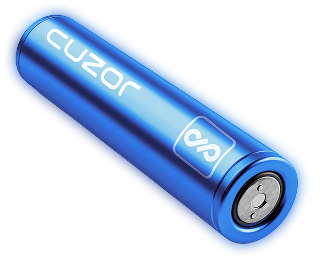

Battery Type
4 × 18650 Lithium-ion Cells
Battery Capacity
2900mAh per cell
Battery Pack Size
75 × 70 × 26 mm
BMS Protection
Overcharge: 4.2V; Discharge Cutoff: 3.2V
Charging Current
500mA
Charging Mode
CC Mode, CV Mode
Charge Cutoff Voltage
16.67V
Switchover Time
PoE: ≤50V @ 277mA; Router: ≤11.4V @ 1A
LED Indicators
Red: Battery Mode; Green: Fully Charged (≥16.5V); Yellow: Charging
Power Switch Modes
ON: Powers router + antenna + LEDs; OFF: Disables outputs, charging still active
Input Rating
12V DC
All specifications are measured at 25°C ambient temperature unless otherwise noted.

Built to perform, so power cuts don’t break your connection.

Rs. 4999 Rs. 2999
