Cuzor Mini UPS Pro for 12V upto 3 Amp
Routers

Up to 8 Hours Backup | 3x2900 mAh EV Grade cells | Replaceable Batteries

Offers

Flat Rs 100 off

MINIUPS100

COPY CODE

₹2,199

₹3,999

50% off

Buy Now

Upto

8 hours

Backup

Built-in EV-grade 3C cells ensure long battery life. A long or a short power cut - Cuzor Mini UPS Plus can handle them all.

BIS

Certified

2900

mAh Batteries

Zero Lag Switching

Avoid router restarts during powercuts. Enjoy seamless connectivity.

Doorstep Replacement Warranty

Having trouble? We pickup your old unit and ship a new one to your doorstep.

Deep Discharge & Overcharge Protection

Enhances battery lifespan by up to 2× by preventing full discharge and automatically stopping charging when the battery is full, ensuring optimal charge and safety.

Supports leading
router brands

Leading broadband providers

All 12V routers upto 3A

Note: Air Fiber devices are not supported as those need an external antenna to work.

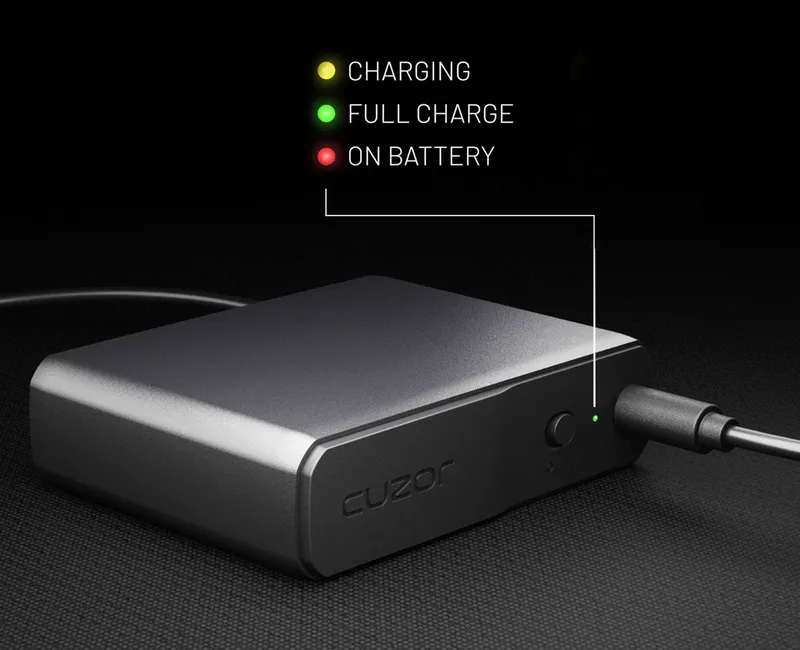

Smart LED
‍Indicator

The LED light provides real-time updates, ensuring you always know whether your UPS is charging, running on battery, or fully charged.

Deep Discharge & Overcharge Protection

Deep-discharge protection

Cuts power at 2.8V to prevent battery failure

Overcharging protection

Stops charging at 4.2V, preventing overheating

Durable

Battery becomes up to 2x more durable

Plug & Play Setup

Follow these four simple steps to install your Cuzor Mini UPS on your own!

STEP 1

Unplug your router's AC/DC adapter and connect it to the Cuzor Mini UPS input marked 'IN'

STEP 2

Connect the bridge cable to Cuzor Mini UPS output marked 'OUT'

STEP 3

Connect the other end of the bridge cable to the WiFi Router or Modem's input

STEP 4

Turn on the Cuzor Mini UPS by sliding the switch from 0 (Off) to 1 (On)

Plug & Play Setup

Follow these three-simple steps to install your Mini Router UPS on your own!

STEP 1

Unplug your router's AC/DC adapter and connect it to the Mini UPS input marked 'IN'

STEP 2

Connect the bridge cable to Mini UPS output marked 'OUT')

STEP 3

Connect the other end of the bridge cable to the WiFi Router or Modem's input

STEP 4

Turn on the MiniUPS by moving the switch from off to on

Specifications

Model : Cuzor Mini UPS Pro for 12V upto 3 Amp

Product

Input

11 to 12.5v

Max Input Current

~3.4A

Output on Mains

0.4V lesser than Input

Output on Battery

0.4V lesser than Input

Max Output Current

Backup Duration for Routers (varies with load)

4 to 8 hours

Max Charging Current

350mA

LED Indications

Green - Mains On & Fully Charged

Orange - Mains On & Charging

Red - On Battery

Full charging time after complete discharge

~6 to 8 hours

Battery Pack

Battery Pack Capacity

32.19 Wh

Battery Chemistry

Lithium-Ion 18650

Cell Capacity

2900mAh

Cell Arrangement

3 in series

Cell Discharge Limit

2.8V

Cell Charging Limit

4.2V

Protection

Over Charge protection

Yes

Over Discharge protection

Yes

Input Overvoltage Protection

Output Overvoltage Protection

Output Undervoltage Protection

Overheat protection

Operating Temperature

0°C to 45°C

Storage Temperature

-10°C to 60°C

Mechanical Specifications

Product HxWxL

10 x 8 x 2.8 Centimeters

Ports

1 Input & 1 Output

Connector Type : DC Jack IN: 5.5*2.1mm, OUT: 5.5*2.1mm

Bridge Cable Dimensions

30cm with 2.5mm male connector on either end

All specifications are measured at 25°C ambient temperature unless otherwise noted.

Battery Replacement Program

The only one of its kind with a doorstep pick-up and replacement warranty. Instead of replacing your entire UPS, simply swap out the battery and keep your internet running without disruption.
